Why roofing terminology matters
Roofing terms describe how a roof sheds water, handles weather, and connects to the rest of a house. Understanding the language makes it easier to read inspection reports, compare repair descriptions, and recognize when a problem may involve more than the visible shingles.
In Ithaca, NY, roofs commonly face repeated cycles of snow, rain, freezing temperatures, thawing, wind, and summer heat. Those conditions make drainage, flashing, ventilation, and moisture control especially relevant to long-term roof performance.
What are the main parts of a roof?
A residential roof is a system of layers rather than a single surface. The major components include:
- Roof deck: The structural surface attached to the rafters or trusses. It is often made from plywood or oriented strand board and supports the underlayment and roof covering.
- Roof covering: The visible outer material, such as asphalt shingles, metal panels, slate, or another approved roofing material.
- Underlayment: A water-shedding layer installed between the roof deck and the roof covering. It provides secondary protection if water gets beneath the outer material.
- Flashing: Thin pieces of metal or other durable material installed around vulnerable transitions, including chimneys, walls, valleys, skylights, and roof penetrations.
- Eaves: The lower horizontal edges of a sloped roof where water leaves the roof surface.
- Rake: The sloped edge of a roof along a gable.
- Ridge: The highest horizontal line where two sloping roof planes meet.
- Hip: An outside angle formed where two roof planes meet and slope downward toward an eave.
Damage to one layer can affect the others. For example, a small flashing failure may allow water to reach the deck, insulation, framing, or interior ceiling even when the shingles nearby appear intact.
What is roof pitch, and why does it matter?
Roof pitch describes how steeply a roof rises compared with its horizontal distance. It may be written as a ratio, such as 6:12, meaning the roof rises 6 inches for every 12 inches of horizontal run.
Pitch affects several practical issues:
- How quickly rain and melting snow drain
- Which roofing materials can be installed safely
- How much visible roof area receives sunlight
- How easily workers can walk on the surface
- How snow may accumulate or slide
A low-slope roof is not necessarily flat. “Flat roof” often refers to a roof with a very small slope that still needs positive drainage. Standing water is a warning sign because roofing systems are generally designed to shed water, not hold it for extended periods.
What is flashing, and where is it used?
Flashing directs water away from joints and changes in roof direction. It is one of the most important terms to understand because many leaks begin at transitions rather than in the middle of an undamaged shingle field.
Common types include:
- Step flashing: Individual pieces installed where a sloped roof meets a sidewall, often arranged in steps beneath the wall covering.
- Apron flashing: A piece placed at the lower edge of a wall-to-roof intersection.
- Valley flashing: Material installed where two roof slopes meet and collect water.
- Chimney flashing: A combination of flashing components used around the base and sides of a chimney.
- Counterflashing: Flashing set into or attached to an upper surface, such as masonry, to protect the top edge of another flashing layer.
- Pipe boot: A prefabricated flashing component that seals around a plumbing vent extending through the roof.
Caulk is not a substitute for properly designed flashing. Sealants can deteriorate from ultraviolet exposure, temperature changes, and movement. A recurring leak around a chimney, wall, or vent may require examination of the entire flashing assembly.
What are valleys, eaves, and drip edges?
A roof valley is the channel where two sloping roof sections meet. Valleys carry a concentrated flow of water and may also receive leaves, ice, and packed snow. Their design and installation have a major effect on drainage.
The eave is the lower roof edge. An eave may include a soffit, which is the underside of the overhang, and a fascia, which is the vertical board along the roof edge.
A drip edge is a formed strip installed along roof edges to help direct water away from the roof deck and fascia. It also helps limit water intrusion at the perimeter. Missing, loose, or poorly aligned edge metal can contribute to stained fascia boards, damaged sheathing, and wet areas near gutters.
What do roof ventilation terms mean?
Roof ventilation helps manage heat and moisture in the attic or roof assembly. A typical ventilation system uses intake openings near the eaves and exhaust openings near the ridge or upper roof area.
Important terms include:
- Soffit vent: An intake vent installed in the underside of an eave.
- Ridge vent: A continuous or semi-continuous exhaust vent installed near the roof ridge.
- Box vent: A static exhaust vent that sits above an opening in the roof.
- Gable vent: A vent installed in a gable end, usually near the upper part of an attic.
- Baffle: A channel that helps preserve airflow from the soffit into the attic when insulation is present.
Ventilation does not dry out a roof that is actively leaking. It is intended to control heat and moisture under normal conditions. In winter, poor ventilation combined with air leakage from the living space can contribute to condensation, damp insulation, mold growth, or uneven snow melting.
What are ice dams?
An ice dam forms when snow melts on a warmer section of the roof, flows toward a colder eave, and refreezes. The resulting ice buildup can obstruct drainage and allow water to move beneath the roof covering.
Ice dams are influenced by attic heat loss, insulation levels, ventilation, weather patterns, roof geometry, and snow depth. They are not simply caused by a particular type of shingle.
For area households, prevention generally involves controlling heat transfer into the attic, maintaining clear drainage paths, and addressing air leaks around light fixtures, attic hatches, ductwork, and other penetrations. Removing ice from a roof can be dangerous and may damage the roof covering, so the hazard should not be treated as a routine do-it-yourself task.
What is the difference between a roof leak and roof condensation?
A roof leak occurs when liquid water enters through a failure in the roof system, such as damaged flashing, deteriorated material, or an opening around a penetration.
Condensation occurs when warm, moist air reaches a cold surface and turns into water. It may appear as damp insulation, frost on roof framing, peeling paint, or ceiling staining. Condensation can resemble a leak, especially during cold weather.
The location of an interior stain does not always identify the source. Water can travel along roof decking, rafters, insulation, or framing before becoming visible indoors. A stain below a roof valley, for example, may originate several feet away.
What do shingle terms mean?

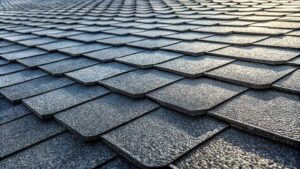

Asphalt shingles are layered roof coverings made from a reinforcing mat, asphalt, and mineral granules. The exposed portion is called the shingle face, while the portion covered by the course above is the headlap.
A starter strip is installed along the lower edge of the roof to help seal and secure the first visible course. Ridge cap shingles cover the ridge and are shaped differently from field shingles.
Granule loss refers to the loss of the small mineral particles embedded in the shingle surface. Some granules may appear in gutters after installation, but widespread bald areas, exposed reinforcement, or repeated granule accumulation can indicate aging or damage.
A blister is a raised area caused by trapped gases or moisture within a shingle. A blister is different from a wind-lifted or mechanically damaged shingle, although both can affect weather resistance.
What is roof sheathing, and why does it matter?
Roof sheathing, also called the roof deck, supports the roof covering. It must remain sufficiently sound for fasteners to hold and for the roof surface to stay stable.
Signs of possible deck problems include:
- Soft or springy areas
- Sagging between rafters or trusses
- Dark staining or decay
- Exposed fasteners
- Repeated leaks in the same area
- Shingles that appear uneven because the surface beneath them has deteriorated
Replacing only the visible outer material may not resolve a problem if the deck, framing, or underlying moisture source is compromised.
Which roofing terms signal a safety concern?
Some conditions should not be approached casually. These include sagging roof planes, active water near electrical fixtures, structural movement, extensive ice buildup, roof damage after a storm, and surfaces that are steep, wet, icy, or fragile.
A homeowner can safely learn the vocabulary, inspect visible attic and ceiling conditions from a stable location, and document changes from the ground. Walking on a roof or attempting to remove ice, snow, or damaged materials may create greater risk than the original problem.
Knowing terms such as flashing, underlayment, roof deck, valley, pitch, ventilation, and ice dam helps residents describe symptoms accurately and understand what a roofing evaluation is actually addressing. That shared vocabulary is useful whether the concern is a small ceiling stain, winter condensation, aging shingles, or water entering around a roof penetration.
